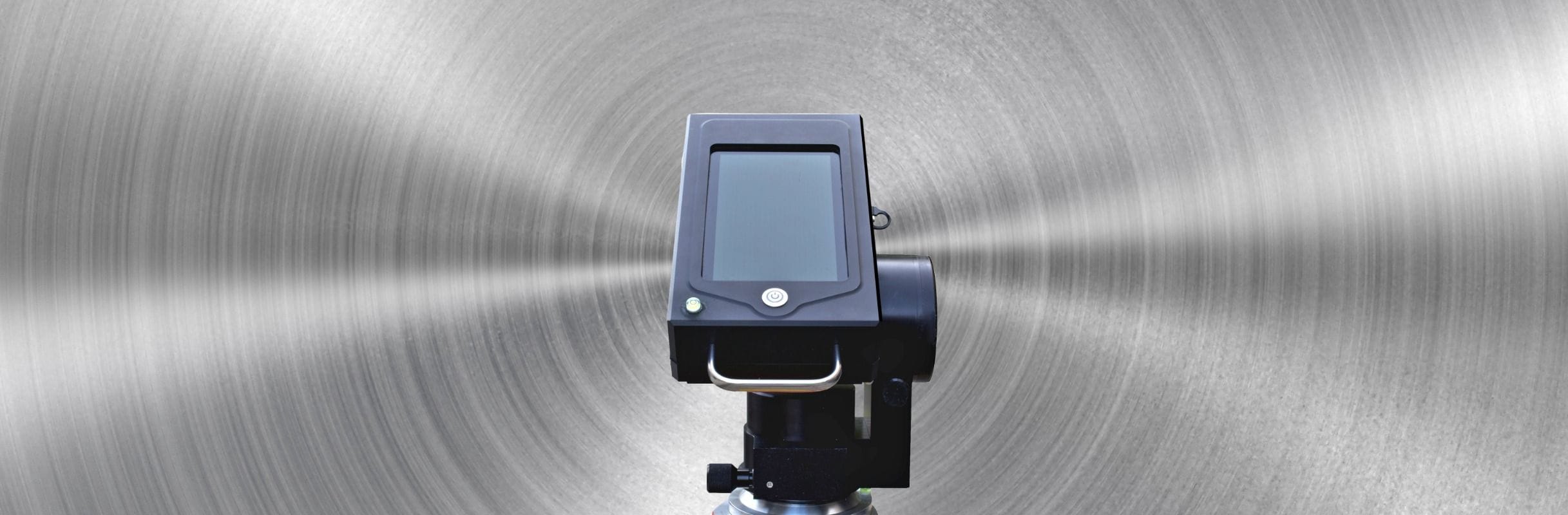

XAlign SmartLaser Aligner, a must-have alignment tool in a drillers' toolbox to perform all alignment tasks and acquire all data: positioning, azimuth angle, dip, and dump.
XALIGN - SMARTLASER ALIGNER
KEY FIGURES

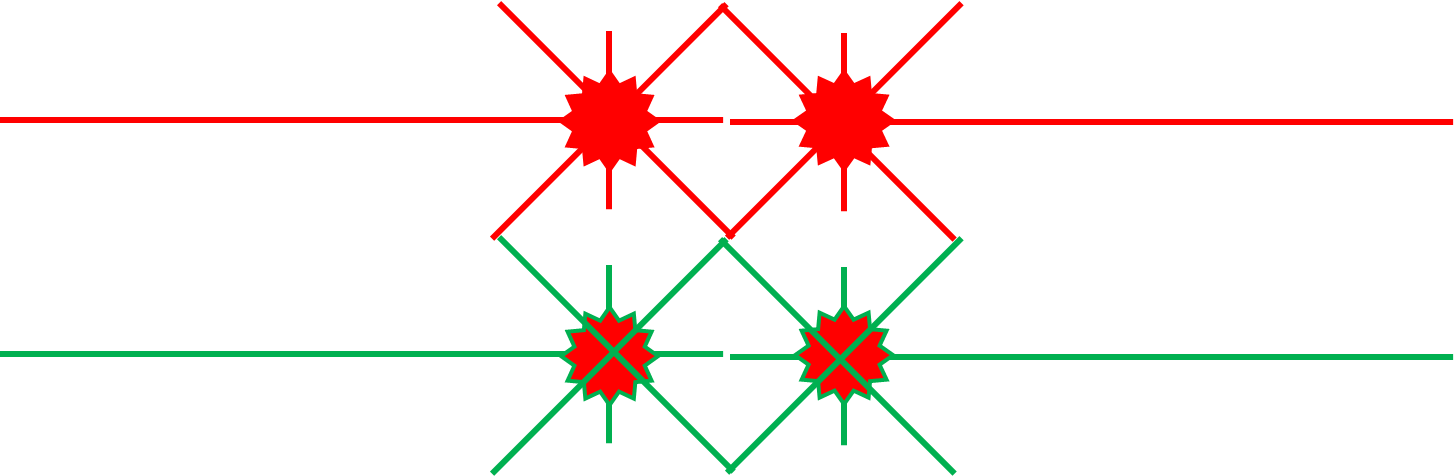

2 red lasers for measurement & 2 green lasers for guidance
5 modes for every alignment task and every drilling operation process

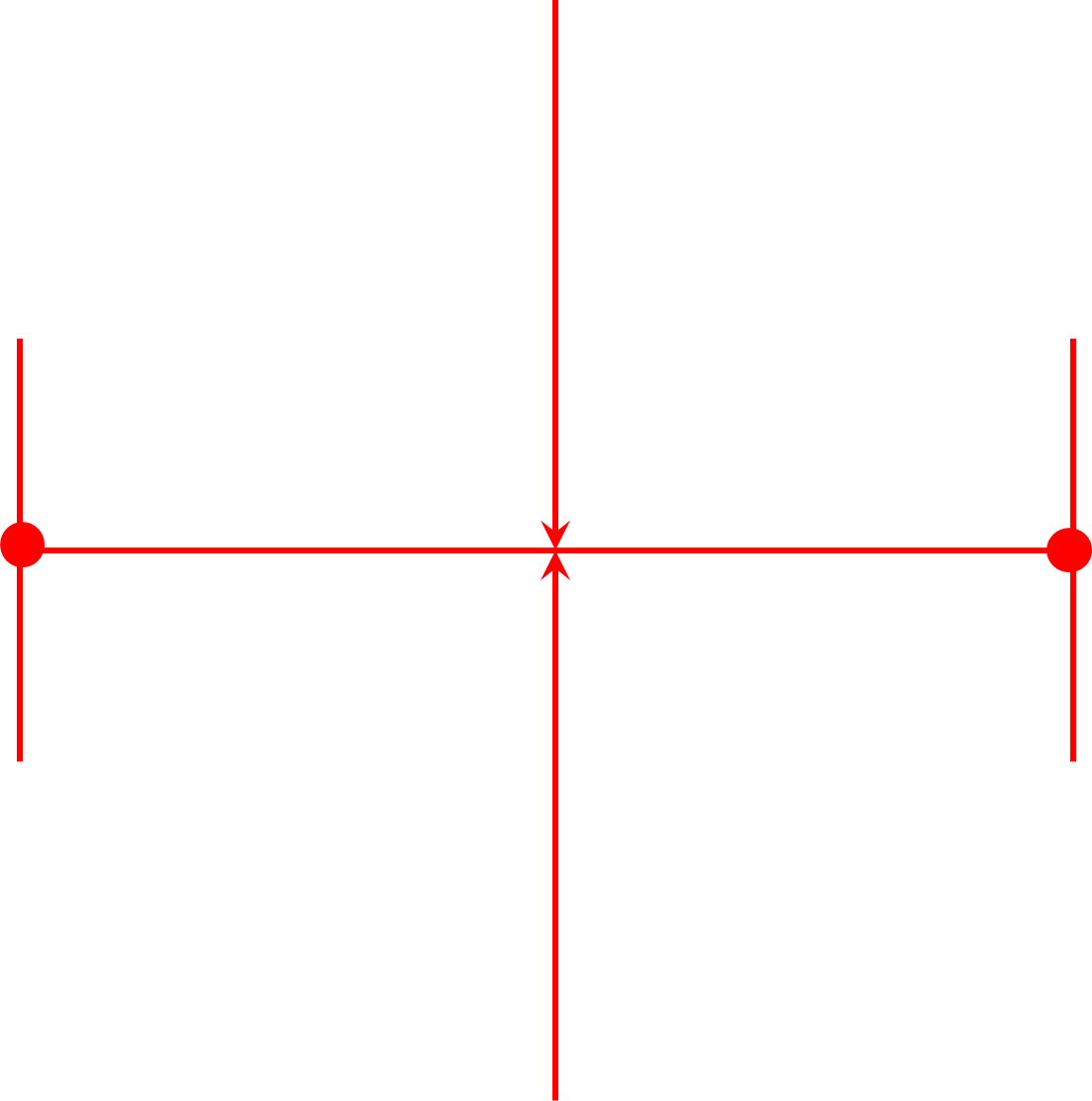

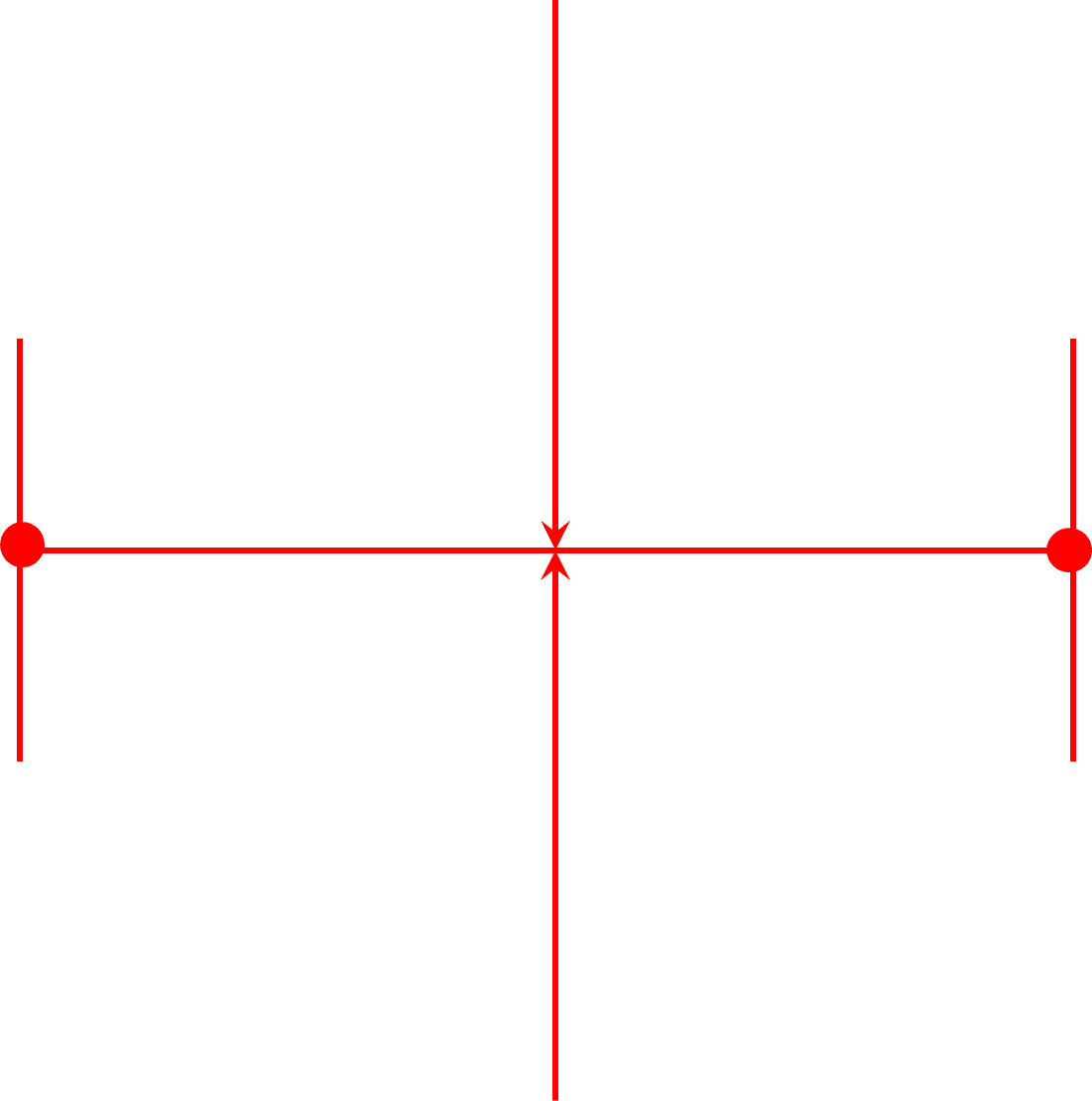

Double reference point scans to get all positioning measurement in azimuth and distance
Smart Laser, Simple Measure
The drillers enter azimuth angle and/or distance from tablet, the XAlign SmartLaser Aligner reads inputs, scans reference points, calculates the new placement, and guides the drillers/miners to point the drill at the new location. The results will be stored in the device and available for download for future reference or performance analysis. The aligner is designed to withstand day-to-day use in harsh underground mining environments.
With the advanced laser measurement technology and an intuitive driller interface, the drillers can accurately align drill rigs. The device provides the quick and easy setup process to eliminate string lines, measuring tapes and expensive equipment rentals.
Features and Value Proposition
A Driller’s tool
The XAlign SmartLaser Aligner was designed by and for drillers, who have been involved in its development from the beginning (engineering, workflow design, and quality assurance). With a rugged design, the device easily withstands drillers' drop testing and is built to the highest quality standard.
Versatile for alignment
The XAlign SmartLaser Aligner is for drillers, surveyors, and miners who need to perform alignment and survey tasks regularly. Its small size and light weight make it easy to use in a variety of applications. The tool comes with different mounting mechanisms, so you can set it up on a tripod, a stand or a drill rig. You define the task and we'll adapt the device to meet your needs.
Dustproof & waterproof
Miners need a laser that can be used in the harsh environment of an underground mine, with constant exposure to dust, water, hydraulic fluid and sulfur . The enclosure of ourXAlign SmartLaser Aligner has an ingress protection (IP) enclosure rating of 67. That means complete protection from dust and water immersion up to 1 metre. We take care of what you need.
Technical Specifications
| Distance Accuracy at 15 m | 3 mm (Combination of angle and distance) |
| Angle Accuracy in 360 ° | 0.5 ° |
| Communication | Bluetooth, USB |
| Working Range | Horizontal 360°, Verticle 310° |
| Laser Color (typical wavelength) | red (638 nm) for measurement |
| Green(565 nm) for indication | |
| Laser Class | 2 |
| Laser Range | 30 m |
| Power Supply | 5V rechargable battery |
| Charging time | 8 hrs |
| Operation Time | 24 hrs |
| Protection | IP67 |
| Dimensions (H × W × D) | 8.7 in. × 4.3 in.× 3.9 in. |
| Weight | 6 lbs |
| Package Weight: | 15 lbs |
